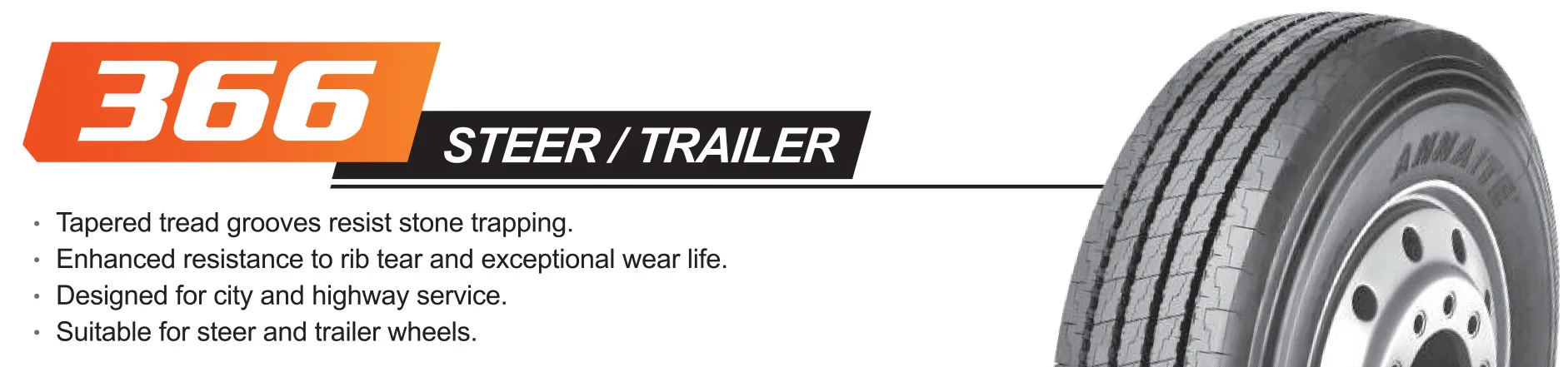

366
SIZE | P.R. | LI&SS | Diameter | Section Width | Std. Rim | Tread Depth | Load Capacity | Inflation Pressure |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (kg) | (KPa) | ||||
| 8R22.5 | 14 | 130/128 M | 936 | 210 | 6.00 | 13.5 | 1900/1800 | 830 |
| 9R22.5 | 16 | 139/137 M | 971 | 232 | 6.75 | 14.5 | 2430/2300 | 930 |
| 10R22.5 | 16 | 144/142 M | 1015 | 252 | 7.50 | 15.5 | 2800/2650 | 900 |
| 11R22.5 | 16 | 146/143 M | 1051 | 268 | 8.25 | 16.5 | 3000/2725 | 830 |
| 11R24.5 | 16 | 149/146 L | 1103 | 275 | 8.25 | 16.5 | 3250/3000 | 830 |
| 12R22.5 | 18 | 152/149 M | 1081 | 298 | 9.00 | 15.0 | 3550/3250 | 930 |
| 13R22.5 | 18 | 154/151 L | 1122 | 300 | 9.75 | 16.5 | 3750/3450 | 830 |
| 205/75R17.5 | 14 | 124/122 M | 749 | 212 | 6.00 | 12.5 | 1600/1500 | 760 |
| 215/75R17.5 | 14 | 126/124 M | 761 | 222 | 6.00 | 12.5 | 1700/1600 | 700 |
| 16 | 128/126 M | 761 | 222 | 6.00 | 12.5 | 1800/1700 | 750 | |
| 225/75R17.5 | 16 | 129/127 M | 776 | 222 | 6.75 | 12.5 | 1850/1750 | 830 |
| 235/75R17.5 | 16 | 132/130 M | 792 | 242 | 6.75 | 13.0 | 2000/1900 | 775 |
| 18 | 143/141 J | 792 | 242 | 6.75 | 13.0 | 2725/2575 | 875 | |
| 245/70R17.5 | 16 | 136/134 M | 781 | 249 | 7.50 | 12.5 | 2240/2120 | 850 |
| 18 | 143/141 J | 781 | 249 | 7.50 | 12.5 | 2725/2575 | 900 | |
| 225/70R19.5 | 14 | 128/126 M | 804 | 225 | 6.75 | 13.0 | 1800/1700 | 760 |
| 245/70R19.5 | 16 | 136/134 M | 769 | 249 | 7.50 | 12.5 | 2240/2120 | 830 |
| 18 | 143/141 J | 769 | 249 | 7.50 | 12.5 | 2725/2575 | 875 | |
| 265/70R19.5 | 16 | 140/138M | 866 | 259 | 7.50 | 14.0 | 2500/2360 | 830 |
| 18 | 143/141 J | 866 | 259 | 7.50 | 14.0 | 2725/2575 | 850 | |
| 285/70R19.5 | 16 | 146/144 M | 888 | 287 | 8.25 | 14.0 | 3000/2800 | 900 |
| 18 | 150/148 J | 888 | 287 | 8.25 | 14.0 | 3350/3150 | 900 | |
| 255/70R22.5 | 14 | 138/134 M | 926 | 245 | 7.50 | 13.0 | 2360/2120 | 760 |
| 16 | 140/137 M | 926 | 245 | 7.50 | 13.0 | 2500/2300 | 830 | |
| 295/80R22.5 | 18 | 154/151 M | 1038 | 298 | 9.00 | 16.5 | 3750/3450 | 900 |
| 315/70R22.5 | 18 | 156/150 L | 1011 | 311 | 9.00 | 15.5 | 3750/3350 | 900 |
| 315/80R22.5 | 20 | 157/154 M | 1071 | 314 | 9.00 | 16.5 | 4125/3750 | 900 |
| NEW 7.50R16LT | 16 | 124/120 L | 801 | 218 | 6.00G | 12.5 | 1600/1400 | 870 |
| NEW 9.5R17.5 | 18 | 143/141 J | 840 | 234 | 6.75 | 14 | 2725/2575 | 875 |
| NEW 275/70R22.5 | 18 | 148/145 M | 956 | 278 | 8.25 | 16.5 | 3150/2900 | 900 |
